What is a Standard Servo and How Does It Power Your Projects?

If you’ve dabbled in robotics, model-building, or electronics, you’ve probably heard of a Standard Servo. But what exactly is it, and why is it such a crucial component in so many projects? In this blog, we’ll explore what a standard servo is, how it works, and why it’s a must-have for hobbyists and professionals alike.

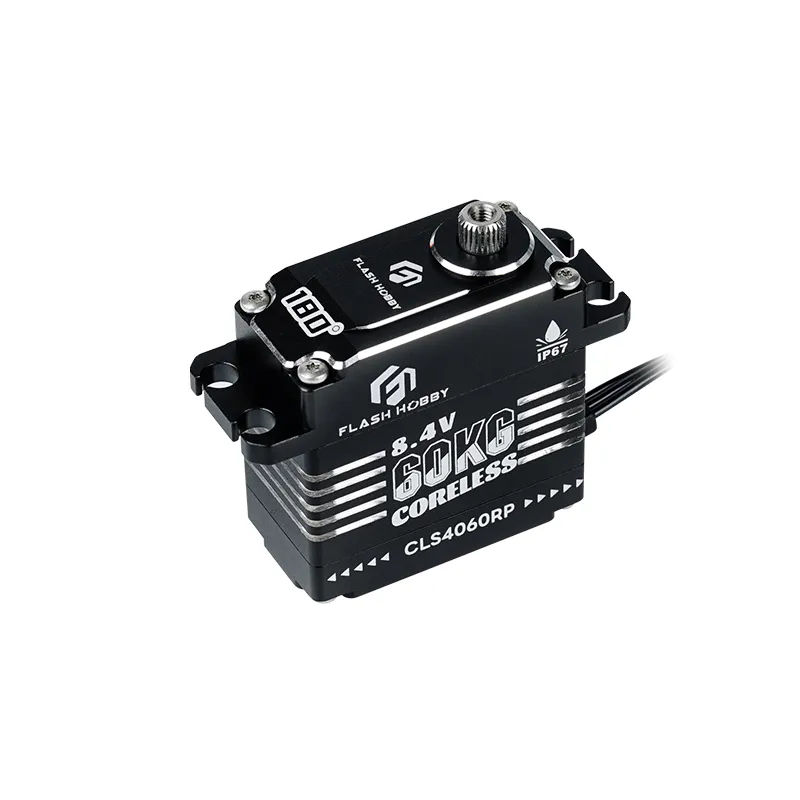

What is a Standard Servo?

A standard servo is a type of rotary actuator that allows precise control of angular position, speed, and torque. It typically consists of a motor, a position sensor (usually a potentiometer), and a control circuit. Standard servos are commonly used in robotics, RC vehicles, and automation projects due to their reliability and ease of use.

The key difference between a standard servo and other motors lies in its feedback system, which allows the servo to maintain its position or return to a set angle when disturbed. Most standard servos operate within a 180-degree range, although some are capable of 360-degree continuous rotation.

How Does a Standard Servo Work?

A standard servo operates on a pulse-width modulation (PWM) signal, which tells the servo what position to move to. Here's how it works:

1. Receiving the Signal: The servo receives a control signal in the form of a PWM pulse from a microcontroller or radio receiver. The width of this pulse determines the target position of the servo.

2. Moving to Position: Once the servo receives the pulse, the control circuit compares the desired position (from the signal) with the current position (measured by the position sensor). If they don’t match, the servo motor moves in the required direction to correct the position.

3. Maintaining Position: After reaching the desired position, the servo continues to monitor the control signal and maintain its position, applying small amounts of power to stay stable even if external forces try to move it.

What Are the Key Components of a Standard Servo?

- Motor: Drives the servo's movement.

- Control Circuit: Interprets the PWM signal and directs the motor to move.

- Gearbox: Reduces the motor speed and increases torque, making it possible for the servo to move with precision and strength.

- Position Sensor: Usually a potentiometer, it tracks the angle of the servo horn and provides feedback to the control circuit.

- Servo Horn: The arm or wheel attached to the output shaft, which is used to move or control external parts of the project.

Why Should You Use a Standard Servo?

1. Precision Control

One of the main reasons standard servos are popular is their ability to control position with high accuracy. Whether you’re turning the wheels of an RC car, moving the joints of a robotic arm, or adjusting a camera gimbal, the precise angular control is essential for smooth and reliable operation.

2. Ease of Use

Standard servos are beginner-friendly, making them accessible for hobbyists and students. With just a basic understanding of PWM signals and how to connect the servo to a microcontroller (like an Arduino), you can integrate it into your projects without much hassle.

3. Versatility

Standard servos can be used in a wide range of applications. From robotics and drones to automatic door openers and animatronics, their ability to control precise movement makes them incredibly versatile. Whether you need linear or rotational motion, a standard servo can fit your project’s needs.

4. Cost-Effective

Another great reason to use standard servos is their affordability. You can find quality servos at relatively low prices, making them an excellent option for both personal projects and large-scale prototypes.

5. Compact Size

Standard servos are small yet powerful. They offer high torque and precision in a compact form, which is ideal for projects with limited space, like RC planes or miniature robots.

Where Are Standard Servos Commonly Used?

1. Robotics

In robotics, servos are used to move joints and provide precise control over arms, legs, and other moving parts. They allow robots to pick up objects, rotate sensors, and perform tasks that require fine-tuned movements.

2. Remote-Controlled Vehicles

RC cars, boats, planes, and drones rely on servos to steer and control other functions like throttle and flaps. Their quick response and accuracy make them a key component in the world of remote-controlled vehicles.

3. Automation

Standard servos are frequently used in automation systems to control movements in conveyor belts, gates, and other automated processes. Their reliability and low power consumption make them suitable for both industrial and hobbyist applications.

4. Prosthetics and Medical Devices

In prosthetics and assistive technologies, standard servos are utilized to mimic natural movements in artificial limbs. Their ability to provide smooth, controlled motion is essential for creating realistic and functional prosthetics.

What Should You Look for in a Standard Servo?

When selecting a standard servo for your project, consider these factors:

- Torque: Make sure the servo provides enough force for the task. Higher torque is needed for heavier loads or tasks requiring more strength.

- Speed: Depending on your application, you may need a faster or slower response time.

- Range of Motion: Ensure the servo offers the required degree of rotation for your project.

- Power Supply: Servos require specific voltage and current to operate, so check that your power source is compatible.

Conclusion: Should You Use a Standard Servo for Your Next Project?

Absolutely! Whether you're a beginner or an experienced maker, a Standard Servo is an invaluable tool for any project that requires precise control over movement. It’s affordable, easy to use, and versatile enough to be integrated into countless applications, from robotics to RC vehicles and even complex automation systems.

So, the next time you're designing a project that needs motion control, consider adding a standard servo to your toolkit. Its combination of precision, reliability, and simplicity might be just what you need to bring your idea to life.
