What is a PV Combiner Box?

A PV (Photovoltaic) Combiner Box is a crucial component in solar power systems, particularly in larger installations. Here's an overview of what it is and its role:

What is a PV Combiner Box?

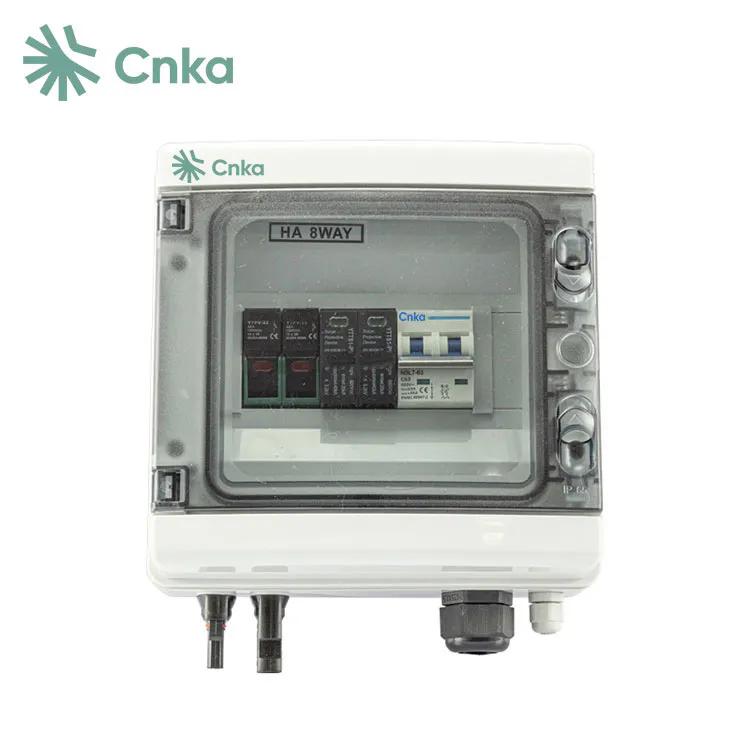

- Purpose: A PV Combiner Box consolidates the output of multiple solar panels (or strings of panels) into a single DC output. It simplifies the wiring and helps in the management and protection of the solar power system.

Key Components:

1. DC Disconnect Switch: This allows the system to be shut down safely for maintenance or in case of an emergency.

2. Fuses/Circuit Breakers: These protect the solar panels and wiring from overcurrent situations, such as short circuits.

3. Surge Protection Device (SPD): Protects the system from voltage spikes, which can occur due to lightning or other electrical disturbances.

4. Diodes: Sometimes included to prevent reverse current that could damage the solar panels.

How It Works:

- Combining Inputs: The box takes multiple DC inputs from the solar panel strings and combines them into a single DC output.

- Protection: It includes various safety features to ensure the longevity and safety of the solar panels and wiring.

- Monitoring: Some PV Combiner Boxes come with monitoring features to track the performance of each string of panels.

Installation:

- Location: Usually installed close to the solar panels, either on the rooftop or at ground level in the case of ground-mounted systems.

- Configuration: The number of inputs and the configuration depend on the size and design of the solar power system.

Importance:

- Efficiency: Helps in reducing the complexity and cost of wiring by minimizing the number of cables needed.

- Safety: Provides necessary protection to the solar power system, ensuring it operates within safe parameters.
