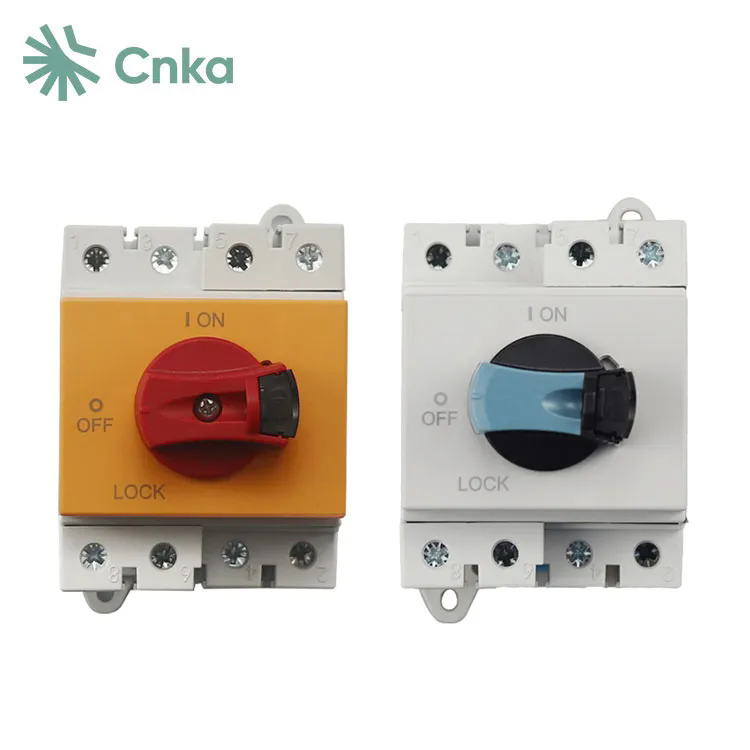

What is a DC Isolator Switch?

A DC Isolator Switch is a critical safety component in solar photovoltaic (PV) systems and other DC power systems. Here’s an overview of its purpose, function, and importance:

What is a DC Isolator Switch?

- Purpose: A DC Isolator Switch is used to safely disconnect the DC power supply in a solar PV system. It isolates the solar panels from the rest of the electrical system for maintenance, inspection, or emergency situations.

Key Features:

1. Manual Operation: The switch is operated manually to disconnect the circuit. It's typically installed in a visible and easily accessible location to ensure quick access in case of an emergency.

2. Polarity and Voltage Handling: Designed to handle the specific polarity and high voltage levels typical of DC circuits. Unlike AC switches, DC isolators are built to prevent arcing, which can occur due to the continuous current flow in DC systems.

3. Weatherproofing: Often weatherproof, especially when installed outdoors, to protect against environmental factors like rain, dust, and UV radiation.

4. Lockable: Many DC isolators have a lockable feature to ensure that the switch cannot be accidentally turned on during maintenance.

How It Works:

- Disconnection: When the switch is turned off, it breaks the connection between the solar panels and the rest of the system, effectively cutting off the DC power supply. This ensures that no current flows from the solar panels into the system.

- Safety: The isolator switch prevents electrical accidents during maintenance by ensuring that there is no live DC current in the system.

Installation and Placement:

- Location: The DC Isolator Switch is usually installed near the solar panels (on the rooftop) and near the inverter. This is to ensure that the DC power can be quickly disconnected both at the source (the panels) and at the inverter.

- Regulatory Compliance: The installation of DC Isolator Switches is often mandated by electrical safety regulations and standards, depending on the region.

Importance:

- Safety: It is vital for the safety of maintenance personnel and first responders, as it allows them to completely de-energize the solar system.

- System Protection: Protects the system from potential damage by allowing safe disconnection during faults or maintenance.

Usage in Solar PV Systems:

- Turn Off Before Inverter: Before working on or troubleshooting a solar inverter, the DC Isolator Switch should be turned off to cut the power supply from the panels.

- Emergency Shut Off: In case of an emergency like a fire, the DC Isolator can be used to quickly shut off the power from the solar panels.

The DC Isolator Switch is essential for ensuring the safe operation and maintenance of solar PV systems.
