Types of Solar Panel Connectors

Solar panel connectors, also known as solar PV connectors or solar cable connectors, play a crucial role in the installation and maintenance of photovoltaic (PV) solar energy systems. These connectors are designed to safely and efficiently transmit electricity generated by solar panels to the rest of the solar system components, such as inverters, charge controllers, batteries, or the electrical grid. Here's an overview of solar panel connectors:

Types of Solar Panel Connectors:

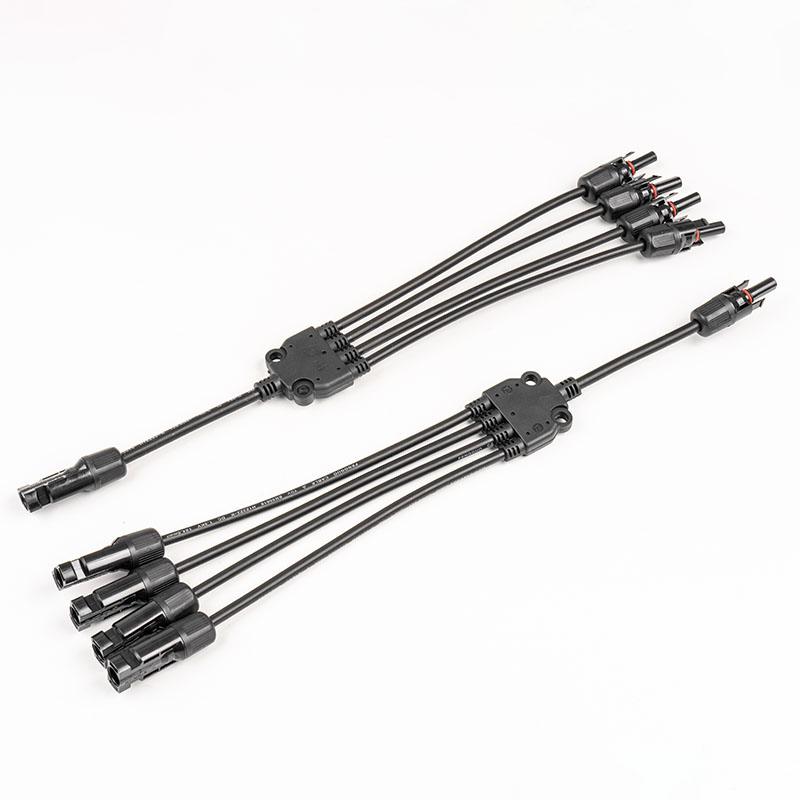

1. MC4 Connectors:

  - MC4 (Multi-Contact 4) connectors are the most common type used in solar panel installations globally.

  - They feature a snap-lock mechanism that ensures a secure and watertight connection, protecting against environmental factors such as moisture and dust.

  - MC4 connectors are designed for both DC (direct current) and AC (alternating current) connections in solar systems.

2. MC3 Connectors:

  - Similar to MC4 connectors but less common in newer installations.

  - They have a slightly different locking mechanism compared to MC4 connectors but are compatible with MC4 connectors with the use of adapter cables.

3. Tyco Solarlok Connectors:

  - Another type of connector used in older solar installations.

  - They are compatible with MC4 connectors with adapter cables and are known for their robustness and reliability.

4. Amphenol H4 Connectors:

  - These connectors are also widely used and are known for their high current-carrying capacity and durability.

  - They feature a secure locking mechanism that ensures a safe and reliable electrical connection.

Key Features of Solar Panel Connectors:

- Waterproof and UV-resistant: Designed to withstand outdoor conditions and ensure long-term reliability.

- Quick and Easy Installation: Connectors typically feature plug-and-play designs that simplify installation without requiring specialized tools.

- Safety: Connectors are designed to prevent accidental contact with live parts and to minimize the risk of electrical shock or short circuits.

Installation Tips:

- Orientation: Ensure proper orientation and alignment of male and female connectors to prevent misalignment or damage during installation.

- Sealing: Use appropriate sealing techniques (such as silicone sealant or heat-shrink tubing) to protect connectors from moisture and environmental factors.

- Quality Assurance: Use connectors that comply with industry standards (such as IEC 62852 or UL 6703) to ensure safety and reliability.

Maintenance:

- Regular Inspection: Periodically inspect connectors for signs of wear, corrosion, or loose connections.

- Cleaning: Keep connectors clean and free from dirt, debris, and corrosion to maintain optimal performance.

- Replacement: Replace connectors if they show signs of damage or deterioration to prevent electrical inefficiency or safety hazards.

Solar panel connectors are critical components in solar energy systems, ensuring efficient power transmission and system reliability. Choosing the right type of connector and maintaining them properly can enhance the performance and longevity of your solar installation.
