In the world of mechanical engineering, precision, efficiency, and durability are paramount. Whether in manufacturing, automotive systems, or industrial machinery, the ability to transfer power smoothly while controlling speed and torque is crucial. One key component that plays an integral role in these tasks is the worm gearbox.
Though not always in the spotlight, worm gearboxes are essential in many applications due to their unique design, which offers specific advantages over other types of gear mechanisms. In this blog, we’ll explore what worm gearboxes are, how they work, and why they are so widely used in various industries.
What is a Worm Gearbox?

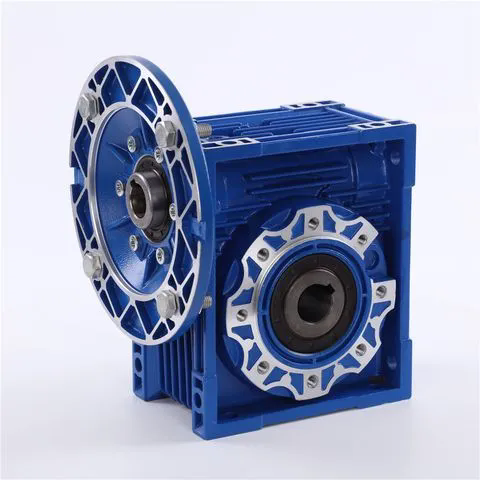

A worm gearbox is a type of gear mechanism that consists of two main components: a worm, which resembles a screw, and a worm wheel, which looks like a regular gear. The worm gear mechanism works by the worm driving the worm wheel, making the worm gear unique for its ability to provide high torque at low speeds in a compact design.
Worm gearboxes are used when a large reduction in speed is required or when there is a need for a system to function quietly and smoothly. Due to their design, worm gears also offer the advantage of being self-locking, meaning they can hold positions without the need for external braking systems—making them ideal for applications that require holding a load in place.
How Does a Worm Gearbox Work?
The functioning of a worm gearbox is fairly straightforward but relies on the unique interaction between the worm and the worm wheel. Here’s how it works:
1. Worm Gear Engagement: The worm gear (a threaded shaft) meshes with the teeth of the worm wheel (a gear with teeth positioned to match the threads of the worm). When the worm rotates, it drives the worm wheel, transferring rotational motion from the worm to the wheel.
2. Speed and Torque Reduction: Worm gears are designed to provide a high reduction ratio. A small rotation of the worm results in a larger rotation of the worm wheel, meaning the system reduces speed and increases torque. For example, a single rotation of the worm can turn the worm wheel by only a fraction of a rotation (depending on the gear ratio), which helps slow down the rotational speed of a connected component.
3. Self-Locking Mechanism: One of the most distinctive features of worm gearboxes is their self-locking capability. Due to the angle at which the worm’s teeth engage with the wheel, it is difficult for the worm wheel to drive the worm back in the opposite direction. This self-locking feature is extremely useful in applications that require holding a load in place without external braking systems.
4. Right-Angle Drive: Most worm gearboxes operate at a right-angle to the input shaft, providing a compact solution for space-constrained applications. This right-angle setup helps in transferring power from one component to another in tight spaces without the need for additional gear sets or complex layouts.
Types of Worm Gearboxes
Worm gearboxes come in various designs and configurations, depending on the specific requirements of the application. Some common types include:
1. Single-Stage Worm Gearbox: This is the most common type, consisting of one set of worm gears. Single-stage worm gearboxes provide significant torque reduction with compact designs. They are often used in applications where a moderate reduction ratio (e.g., 5:1, 10:1) is sufficient.
2. Multi-Stage Worm Gearbox: For applications requiring a larger reduction ratio, multi-stage worm gearboxes are used. These gearboxes have multiple sets of worm gears stacked together, providing higher levels of torque reduction in systems that require slower speeds or higher force.
3. Inline Worm Gearbox: In this configuration, the worm and worm wheel are aligned along the same axis. It is commonly used in applications where space is limited but high torque output is needed.
4. Right-Angle Worm Gearbox: This is the most common type of worm gearbox, where the input and output shafts are set at a 90-degree angle. These are ideal for situations where power needs to be transferred between perpendicular axes, such as in conveyor systems or lifting equipment.
Advantages of Worm Gearboxes
Worm gearboxes offer several advantages, making them a popular choice in various mechanical systems. Some of the key benefits include:
1. High Torque Output: Worm gears can achieve high torque output despite their compact size. The gear ratios can be designed to reduce speed significantly, providing the necessary torque to move heavy loads.
2. Self-Locking Mechanism: The self-locking feature of worm gearboxes makes them particularly beneficial in applications where holding a load in place is critical. This is why worm gears are often used in elevators, lifts, and other systems that require safety and security without additional braking systems.
3. Smooth and Quiet Operation: Worm gears operate very smoothly and quietly compared to other gear types. The smooth contact between the worm and worm wheel reduces noise and vibration, making worm gearboxes ideal for applications where noise reduction is important (e.g., in robotics or medical equipment).
4. Compact and Space-Saving: Due to the right-angle design and the ability to achieve high reduction ratios in a small space, worm gearboxes are extremely compact. This makes them ideal for applications where space is at a premium, such as in small machinery or where compactness is a design constraint.
5. Durability and Reliability: Worm gearboxes are built to handle heavy loads and high torque. When properly lubricated, they offer long service lives and can withstand harsh environments and demanding conditions.
6. Backlash Reduction: Worm gears, due to their unique design, tend to reduce the possibility of backlash (the slight movement that occurs when gears do not mesh perfectly), which is essential for applications requiring precise movement control.
Applications of Worm Gearboxes
Worm gearboxes are used in a wide variety of applications, ranging from small machines to large-scale industrial systems. Some common applications include:
1. Lifts and Elevators: The self-locking feature of worm gearboxes makes them ideal for lifting applications. In elevators and lifts, worm gearboxes can hold the load in place, ensuring safety and stability when the system is not in motion.
2. Conveyor Systems: Worm gearboxes are commonly found in conveyor systems, where they reduce the speed of motors while increasing torque to efficiently move heavy materials in warehouses, factories, or mining operations.
3. Industrial Machinery: From food processing equipment to material handling systems, worm gearboxes are used in a wide range of industrial machinery. Their ability to provide high torque and precise control makes them suitable for applications that require smooth operation under heavy loads.
4. Robotics: In robotics, worm gearboxes are used to provide precise control and smooth movement. Their quiet operation and durability also make them ideal for robotic arms, positioning systems, and other mechanical tasks in automated environments.
5. Winches and Hoists: In winches, hoists, and other lifting equipment, worm gearboxes offer the necessary torque to lift heavy objects while ensuring that the load remains stationary when the motor is not running.
6. Automotive Applications: Worm gears are sometimes used in steering mechanisms or other automotive systems where space constraints and torque requirements make worm gearboxes a viable option.
Disadvantages of Worm Gearboxes
While worm gearboxes offer many advantages, they also have some drawbacks:
1. Efficiency Loss: Due to the sliding contact between the worm and the wheel, worm gearboxes are less efficient than other types of gears, particularly when used for high-speed applications. The friction between the components generates heat and results in energy loss.
2. Heat Generation: Because of the friction involved in the meshing of the worm and wheel, worm gearboxes can generate heat, requiring proper lubrication and cooling to prevent damage.
3. Limited Load Capacity: Worm gearboxes are not as well-suited for applications requiring extremely high loads or speeds. For such tasks, other types of gear systems like bevel or planetary gears may be more appropriate.
Conclusion
Worm gearboxes may not always steal the spotlight in the world of mechanical systems, but their unique design and powerful advantages make them indispensable in various industries. From providing high torque in compact spaces to ensuring precise and smooth movement, worm gearboxes have earned their place in applications ranging from industrial machinery to robotics.
If you are designing or maintaining a system that requires reliable power transmission, precise movement control, or safety features like self-locking capabilities, a worm gearbox might be the perfect solution. With proper maintenance and lubrication, worm gearboxes can offer durability, efficiency, and long-lasting performance for a variety of applications.
