How sleeve anchors work and their key components

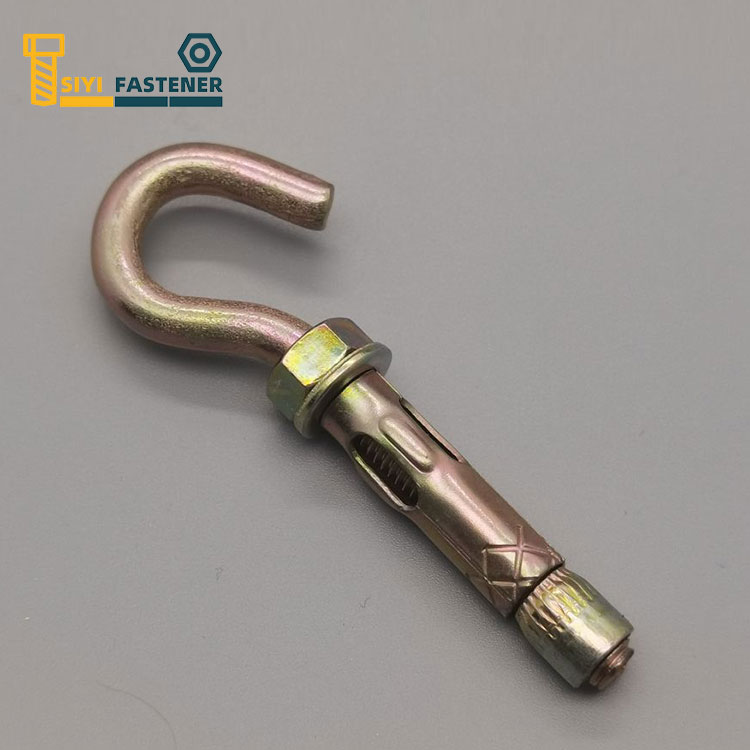

A sleeve anchor is a type of fastener used to secure objects to concrete, brick, or other solid materials. It is commonly used in construction and is designed to provide a strong and reliable connection. Sleeve anchors are versatile and can be used for various applications, such as anchoring structural elements, equipment, or fixtures to masonry surfaces.

Here's a basic overview of how sleeve anchors work and their key components:

1. Sleeve: The sleeve is a cylindrical metal tube that surrounds the other components of the anchor. It typically has external threads on its outer surface.

2. Expansion Clip: Inside the sleeve, there is an expansion clip or wedge. This component is responsible for expanding the anchor when the bolt is tightened. It is usually made of metal and is designed to grip the sides of the hole in the base material.

3. Nut and Washer: A nut and washer are threaded onto the end of the sleeve anchor. These components are tightened to expand the expansion clip and secure the anchor in place.

Here's a general step-by-step guide on how to install a sleeve anchor:

1. Drilling the Hole: Drill a hole into the base material with a drill bit that matches the diameter of the sleeve anchor. The depth of the hole should be at least the length of the anchor.

2. Inserting the Anchor: Place the sleeve anchor into the hole, making sure it is flush with the surface.

3. Tightening the Nut: Thread the nut and washer onto the exposed end of the sleeve anchor and tighten with a wrench. As the nut is tightened, the sleeve expands, creating a secure connection with the base material.

4. Checking Tightness: Ensure that the anchor is securely tightened by checking for any movement. The fixture can then be attached to the anchor.

Sleeve anchors are available in various materials, including steel, stainless steel, and zinc-plated steel, depending on the application and environmental conditions. It's essential to follow the manufacturer's guidelines and recommendations for proper installation and load capacities.
