Features of Threaded Ball Valves

2024-07-05

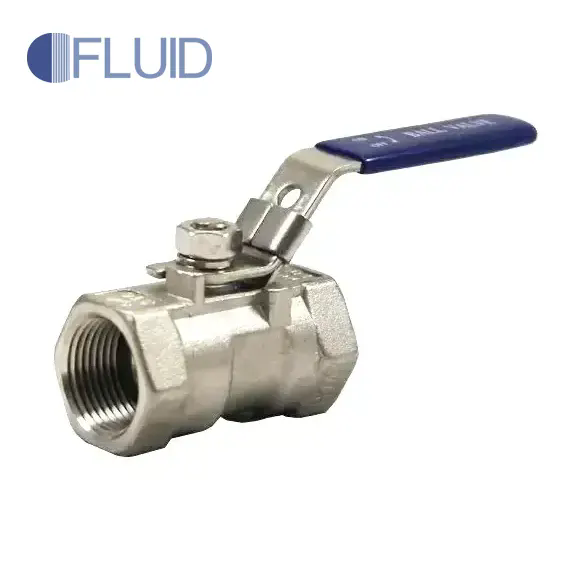

A threaded ball valve is a type of valve used to control the flow of liquids or gases through a pipeline. It operates by rotating a ball with a hole through it (the ball) inside the valve body. Here's an overview of the features, uses, and considerations for threaded ball valves:

Features of Threaded Ball Valves

1. Ball Mechanism:

  - The ball inside the valve has a hole (port) through its center. When the hole is aligned with the flow, the valve is open, allowing fluid or gas to pass through. Rotating the ball 90 degrees closes the valve, blocking the flow.

2. Materials:

  - Valve bodies and balls are typically made from materials such as stainless steel, brass, or PVC (polyvinyl chloride), chosen based on the application's pressure, temperature, and compatibility with the fluid or gas.

3. Threaded Connections:

  - Threaded ends (usually NPT - National Pipe Thread) allow easy installation and removal of the valve into a threaded pipe system without the need for welding.

4. Handle or Actuator:

  - A lever handle or actuator is used to rotate the ball inside the valve, controlling the flow. Some valves may have locking mechanisms to prevent unintentional operation.

5. Sizes and Pressure Ratings:

  - Available in various sizes ranging from small sizes (e.g., 1/4 inch) to larger sizes suitable for industrial applications. Pressure ratings vary, with higher ratings suitable for more demanding environments.

6. Applications:

  - General Purpose: Used in a wide range of industries and applications, including water supply, HVAC (heating, ventilation, and air conditioning), plumbing, and industrial processes.

  - High Temperature and Pressure: Specialized valves are designed to handle high temperatures and pressures, such as in steam applications or chemical processing.

Uses of Threaded Ball Valves

- On/Off Control: Provides a quick and reliable method to start, stop, or throttle flow in a pipeline.

- Isolation: Allows for isolation of sections of a pipeline for maintenance or repairs.

- Versatility: Suitable for use with various fluids and gases, including corrosive and aggressive media when constructed from appropriate materials.

Considerations When Choosing Threaded Ball Valves

- Material Compatibility: Ensure the valve materials are compatible with the fluid or gas being handled to prevent corrosion or degradation.

- Size and Pressure Rating: Select the appropriate valve size and pressure rating based on the application's requirements.

- Temperature Range: Consider the operating temperature range to ensure the valve can handle the temperature variations without malfunctioning.

- Valve Operation: Choose between manual (lever handle) or automated (actuated) valves depending on the need for manual control or remote operation.

Threaded ball valves are reliable and widely used for their simplicity, durability, and ease of installation in various industrial, commercial, and residential applications. When properly selected and maintained, they provide efficient flow control and contribute to the safety and functionality of piping systems.
