Considerations regarding weld nuts

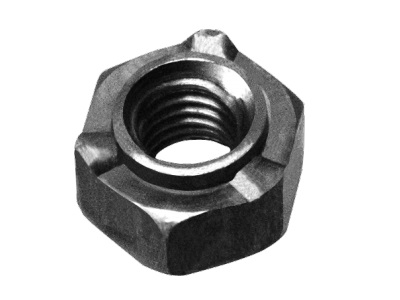

A weld nut, also known as a welded nut or projection weld nut, is a type of fastener designed to be welded to another object, typically a metal workpiece. Weld nuts are commonly used in applications where a permanent threaded fastening point is needed, and the nut can be securely attached through welding. Here are key features and considerations regarding weld nuts:

1. Projection:

  - Weld nuts typically have a raised or projecting portion (projection) on one side. This projection serves as the point where the weld is applied, securing the nut to the workpiece.

2. Threaded Interior:

  - Like other nuts, weld nuts have a threaded interior that allows them to receive a bolt or threaded rod. This threaded portion allows for the secure fastening of components.

3. Materials:

  - Weld nuts are available in various materials, including carbon steel, stainless steel, and other alloys. The choice of material depends on factors such as the application environment, required strength, and corrosion resistance.

4. Types of Weld Nuts:

  - There are different types of weld nuts, each designed for specific applications. Common types include:

     - Spot Weld Nut: Has one or more projections for spot welding.

     - Projection Weld Nut: Designed for projection welding, where the nut is welded at specific points.

     - Tab Weld Nut: Has tabs or wings that aid in positioning and welding.

5. Welding Process:

  - Weld nuts are attached to workpieces using various welding processes, such as spot welding or projection welding. These processes involve applying heat and pressure to melt and fuse the nut to the workpiece.

6. Application in Sheet Metal:

  - Weld nuts are frequently used in sheet metal applications where a threaded fastening point is required. The nut is typically placed on the backside of the sheet metal, and welding is done through the projecting portion.

7. Automotive Industry:

  - Weld nuts are commonly used in the automotive industry for attaching various components, including brackets, panels, and other parts that require a threaded connection.

8. Convenience in Assembly:

  - Weld nuts offer convenience in assembly as they eliminate the need for additional hardware, such as nuts and bolts, during the final assembly process.

9. Load-Bearing Capacity:

  - The load-bearing capacity of weld nuts is determined by factors such as the material, size, and welding quality. Proper welding is essential to ensure the strength and integrity of the connection.

10. Thread Size and Type:

   - Weld nuts come in various thread sizes and types to accommodate different bolt sizes and threading standards.

11. Design Considerations:

   - Engineers and designers must consider factors such as the thickness of the material, welding parameters, and the specific requirements of the application when selecting and using weld nuts.

Weld nuts provide a reliable and permanent threaded fastening solution, particularly in applications where drilling and tapping holes for traditional nuts may be impractical. The welding process ensures a strong and secure attachment, making them suitable for various industries and applications.
