Components of Pneumatic Air Source Treatment

2024-06-27

Pneumatic air source treatment, often referred to as air preparation or air treatment units, is an essential component in pneumatic systems used across various industries. These units are responsible for conditioning compressed air to ensure it meets specific quality standards before it reaches pneumatic components like valves, actuators, and tools. Here’s an overview of what pneumatic air source treatment involves:

Components of Pneumatic Air Source Treatment:

1. Filter:

  - Purpose: Filters are used to remove solid particles (such as dust, dirt, and rust) and liquid contaminants (such as water and oil mist) from the compressed air stream.

  - Types: Available in various filtration levels (e.g., general purpose, high efficiency, coalescing filters for oil removal) depending on the required air quality.

2. Regulator:

  - Purpose: Regulators control and maintain a steady downstream pressure of the compressed air.

  - Adjustability: Allows for adjustment of output pressure to match the requirements of pneumatic devices and systems.

  - Pressure Relief: Includes a pressure relief valve to prevent over-pressurization and protect downstream components.

3. Lubricator:

  - Purpose: Lubricators inject a fine mist of oil into the compressed air stream to lubricate pneumatic tools and equipment.

  - Types: Oil mist lubricators are commonly used, with adjustable oil delivery rates to suit different applications.

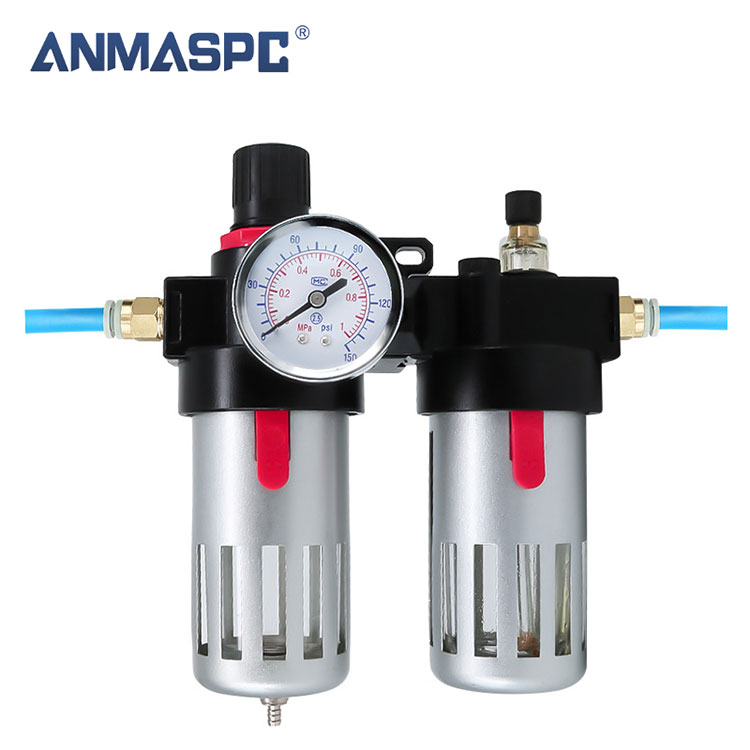

4. Combination Units:

  - Purpose: Many air treatment units combine filters, regulators, and lubricators (FRL units) into a single assembly for compactness and ease of installation.

  - Integration: These units are integrated into the air supply line near the point of use to ensure efficient operation and minimal pressure drop.

Function and Importance:

- Clean Air Supply: Ensures that compressed air is free from contaminants that can damage or impair the performance of pneumatic components.

- Protection: Protects downstream equipment from wear, corrosion, and malfunction caused by dirt, moisture, and inadequate pressure regulation.

- Efficiency: Improves the efficiency and reliability of pneumatic systems by maintaining consistent air quality and pressure levels.

- Safety: Enhances workplace safety by reducing the risk of equipment failure and minimizing maintenance requirements.

Installation and Maintenance:

- Location: Installed close to the point of use to minimize pressure drop and ensure effective air treatment.

- Filter Replacement: Regularly replace filter elements and drain accumulated water and contaminants from the system to maintain optimal performance.

- Oil Refill: Refill lubricators with appropriate oil to ensure consistent lubrication of pneumatic tools and equipment.

Considerations:

- Air Quality Standards: Determine the required level of air quality (e.g., according to ISO 8573 standards) based on the specific application and operational requirements.

- Compatibility: Select air treatment components that are compatible with the type of compressed air system (e.g., size, pressure ratings, flow capacity).

- Environmental Factors: Consider environmental conditions (temperature, humidity) that may affect the performance of pneumatic air treatment units.

Pneumatic air source treatment is fundamental for maintaining efficient and reliable operation of pneumatic systems in manufacturing, automotive, aerospace, and other industries where compressed air is used extensively. Proper selection, installation, and maintenance of air treatment units ensure prolonged equipment life and consistent performance.
