Benefits of Waterproof Bulkhead Connectors

2024-06-19

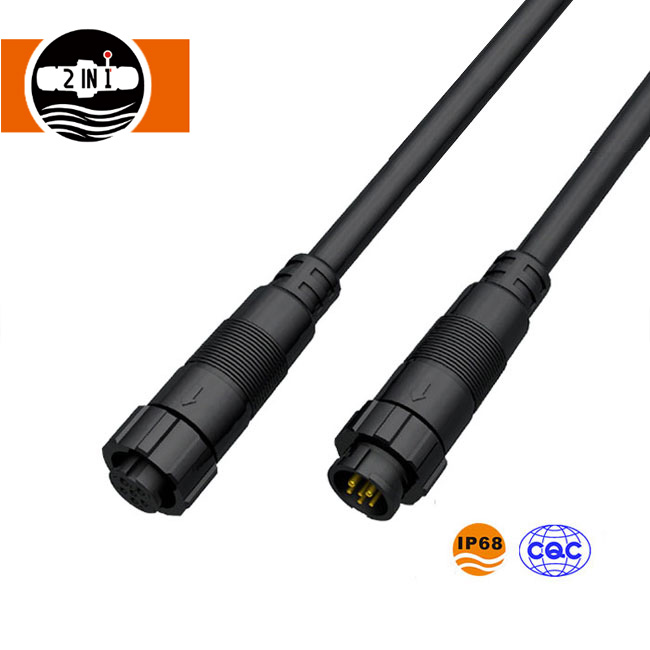

Waterproof bulkhead connectors are essential components in various industrial, marine, and outdoor applications where electrical or data connections need to be protected from water and other environmental factors. These connectors are designed to provide a secure, watertight seal, ensuring the reliability and safety of the connections they protect. Here’s a comprehensive overview of waterproof bulkhead connectors:

Key Features:

1. Waterproof Sealing:

  - IP Ratings: Typically rated IP67, IP68, or higher, indicating their ability to withstand immersion in water and resist dust ingress.

  - Sealing Mechanisms: Use O-rings, gaskets, and other sealing materials to create a watertight barrier.

2. Materials:

  - Housing: Made from durable materials such as stainless steel, brass, or high-quality plastics to resist corrosion and environmental damage.

  - Contacts: Usually gold-plated or made from corrosion-resistant alloys to ensure reliable electrical conductivity.

3. Design:

  - Bulkhead Mounting: Designed to be mounted through a panel or bulkhead, creating a secure and sealed connection point.

  - Coupling Mechanisms: May include threaded, bayonet, or push-pull coupling mechanisms for secure and easy connection and disconnection.

  - Cable Gland: Often includes a cable gland or strain relief to protect the cable and maintain the waterproof seal.

4. Connector Types:

  - Power Connectors: For high-current applications, such as marine engines or outdoor lighting systems.

  - Data Connectors: For transmitting data signals, such as Ethernet, USB, or coaxial connections.

  - Hybrid Connectors: Combine power and data transmission in a single connector.

Applications:

1. Marine and Offshore:

  - Used in boats, ships, and offshore platforms to protect electrical systems from saltwater and harsh marine conditions.

2. Industrial and Outdoor Equipment:

  - Employed in outdoor machinery, lighting systems, and control panels exposed to weather elements.

  - Essential in industries such as mining, agriculture, and construction where equipment is exposed to dust, mud, and water.

3. Automotive and Transportation:

  - Utilized in vehicles, including trucks, buses, and trains, to ensure reliable electrical connections in various environmental conditions.

4. Renewable Energy:

  - Key in solar and wind power installations where components are exposed to outdoor elements.

Benefits:

1. Protection and Durability:

  - Environmental Protection: Prevents water, dust, and other contaminants from damaging electrical connections.

  - Corrosion Resistance: Materials used in construction resist corrosion, extending the lifespan of the connectors.

2. Reliability and Safety:

  - Secure Connections: Robust design ensures reliable and stable connections, reducing the risk of electrical failures.

  - Safety: Waterproof design reduces the risk of short circuits and electrical hazards in wet environments.

3. Versatility:

  - Wide Range of Applications: Suitable for various industrial, marine, and outdoor uses.

  - Multiple Configurations: Available in different sizes, configurations, and types to meet specific requirements.

Selection Considerations:

1. IP Rating:

  - Choose a connector with an appropriate IP rating based on the level of water and dust exposure expected in the application.

2. Material and Construction:

  - Ensure the materials used for the housing and contacts are suitable for the environmental conditions (e.g., corrosion resistance for marine use).

3. Electrical Requirements:

  - Match the connector to the electrical requirements of the application, considering factors such as voltage, current, and signal type.

4. Size and Compatibility:

  - Ensure the connector fits within the available space and is compatible with the cables and equipment being used.

5. Ease of Installation:

  - Consider connectors that are easy to install and maintain, with secure and straightforward coupling mechanisms.

Conclusion:

Waterproof bulkhead connectors are critical components for ensuring reliable and safe electrical and data connections in challenging environments. By providing robust protection against water, dust, and other environmental factors, these connectors play a vital role in the functionality and longevity of various industrial, marine, and outdoor systems. Selecting the right waterproof bulkhead connector involves considering factors such as IP rating, material, electrical requirements, and ease of installation to meet the specific needs of the application.
