Applications and Considerations for Aluminium Heat Sinks

Aluminum heat sinks are essential components used to dissipate heat generated by electronic devices, LEDs, and other components that produce heat during operation. Here are the key features, applications, and considerations for aluminum heat sinks:

Key Features:

1. Material Composition:

  - Aluminum Alloy: Typically made from aluminum or aluminum alloys such as 6061 or 6063 due to their excellent thermal conductivity and lightweight properties.

  - High Thermal Conductivity: Aluminum has a thermal conductivity of approximately 205 W/m·K, making it effective in transferring heat away from the source.

2. Design and Structure:

  - Fins: Ribbed or finned structure designed to increase surface area for enhanced heat dissipation.

  - Base Plate: Flat base that makes contact with the heat source (e.g., CPU, LED) to transfer heat to the fins.

  - Extruded or Machined: Available in extruded or machined forms depending on the specific application requirements.

3. Surface Treatment:

  - Anodized Finish: Often anodized for improved corrosion resistance and durability.

  - Natural or Black Anodized: Options for different aesthetic preferences and environmental conditions.

4. Mounting Options:

  - Mounting Holes: Pre-drilled holes or clips for easy installation and attachment to the heat-generating component or device.

  - Adhesive Thermal Tape: Some heat sinks come with adhesive thermal tapes for secure attachment without additional hardware.

5. Customization:

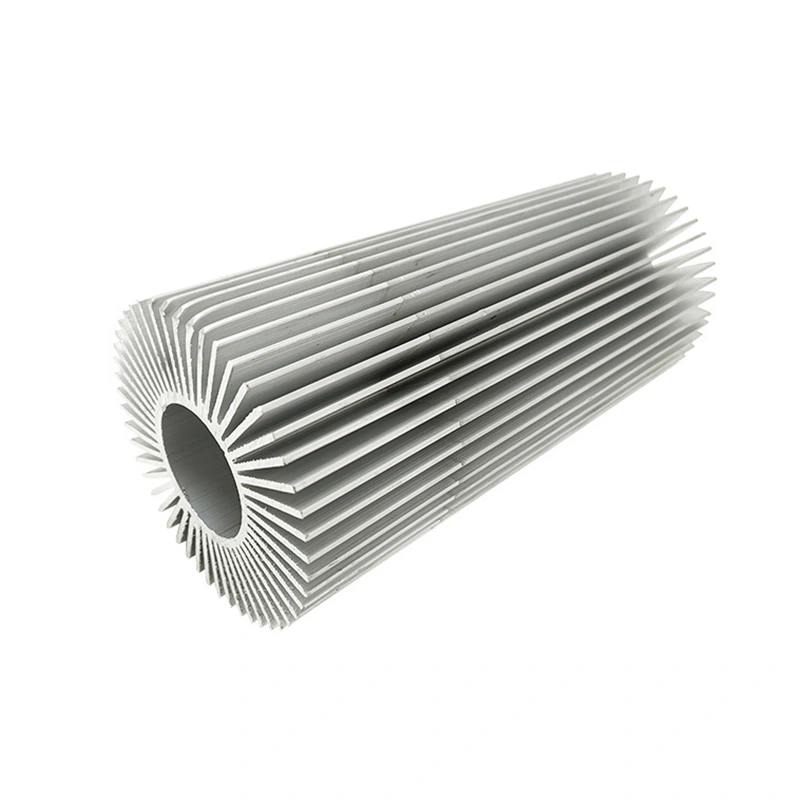

  - Size and Shape: Available in various sizes, shapes (e.g., rectangular, cylindrical), and configurations to suit specific applications and space constraints.

  - Custom Designs: Can be customized for unique thermal management requirements and integration into electronic assemblies.

6. Applications:

  - Electronics: Used in electronic devices such as CPUs, GPUs, power transistors, and voltage regulators to dissipate heat and prevent overheating.

  - LED Lighting: Essential in LED lighting fixtures to maintain optimal operating temperatures and prolong LED lifespan.

  - Power Supplies: Employed in power supply units (PSUs) and converters to manage heat generated by high-power components.

  - Automotive: Used in automotive electronics and lighting systems for thermal management in vehicle electronics.

  - Industrial Equipment: Applications in industrial machinery, telecommunications equipment, and medical devices requiring efficient heat dissipation.

7. Performance and Efficiency:

  - Thermal Management: Improves overall system reliability and performance by maintaining lower operating temperatures.

  - Noise Reduction: Helps reduce noise levels in electronic devices by preventing thermal throttling and excessive fan usage.

Considerations:

- Heat Dissipation Requirements: Select a heat sink with adequate thermal capacity to handle the heat output of the component it is cooling.

- Space Constraints: Consider size, shape, and clearance requirements when choosing a heat sink for specific applications.

- Environmental Conditions: Ensure compatibility with environmental factors such as humidity, temperature extremes, and exposure to chemicals.

- Installation: Follow manufacturer guidelines for proper installation to maximize thermal efficiency and reliability.

Aluminum heat sinks play a crucial role in maintaining the optimal operating temperatures of electronic components and devices, ensuring reliable performance and longevity. They are available in a wide range of sizes and designs to meet diverse thermal management needs across various industries and applications.
