Applications and Advantages of 1Mega Pixel Camera Module

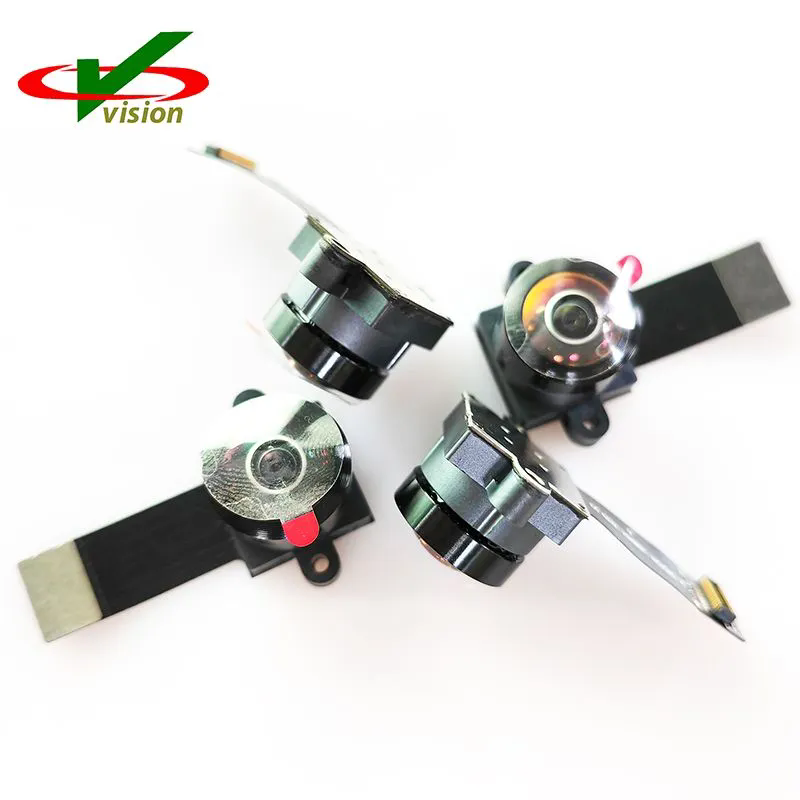

A 1-megapixel (MP) camera module is a compact and versatile imaging component used in various applications, from consumer electronics to industrial systems. Here are the key aspects of a 1-megapixel camera module:

Basic Specifications

1. Resolution

  - Pixels: A 1-megapixel camera captures images with approximately 1 million pixels, typically around 1280 x 800 pixels resolution.

  - Image Quality: Sufficient for applications requiring moderate image clarity and detail.

2. Sensor Type

  - CMOS (Complementary Metal-Oxide-Semiconductor): Commonly used due to low power consumption and high integration capability.

  - CCD (Charge-Coupled Device): Less common in 1MP modules, but known for higher image quality and sensitivity.

3. Lens

  - Fixed or Adjustable: Fixed lenses are common for simple applications, while adjustable lenses are used for applications needing focus flexibility.

  - Field of View (FOV): Determines the area covered by the camera. A wider FOV captures more of the scene but may have lower detail per unit area.

4. Interface

  - Parallel, Serial (I2C, SPI), USB, MIPI CSI-2: Different interfaces for data transfer depending on the application and host device compatibility.

5. Frame Rate

  - Frames Per Second (FPS): Typically ranges from 15 to 60 FPS, affecting how smoothly the video is captured and displayed.

Key Features

1. Image Processing Capabilities

  - Auto White Balance (AWB): Adjusts the color balance for different lighting conditions.

  - Auto Exposure (AE): Controls the amount of light entering the sensor to avoid overexposed or underexposed images.

  - Noise Reduction: Reduces image noise for clearer pictures.

2. Connectivity

  - Digital Output: Provides digital signals that can be easily processed by microcontrollers or processors.

  - Analog Output: Less common, but available for specific legacy applications.

3. Power Consumption

  - Low Power: Important for battery-operated or portable devices.

4. Form Factor

  - Size and Mounting: Small and compact, suitable for integration into various devices. Mounting options include board mount, surface mount, and screw mount.

Applications

1. Consumer Electronics

  - Smartphones and Tablets: Front-facing cameras for video calls and selfies.

  - Webcams: For video conferencing and online communication.

  - Security Cameras: Basic surveillance applications.

2. Industrial and Medical

  - Machine Vision: Used in automated inspection systems for quality control.

  - Microscopy: For capturing images through microscopes in medical and research labs.

3. Automotive

  - Driver Assistance Systems: Basic vision systems for parking and maneuvering.

  - Dashcams: Recording driving footage for security and insurance purposes.

4. IoT Devices

  - Smart Home Devices: Integrated into smart doorbells, security systems, and home automation gadgets.

Advantages

- Cost-Effective: Affordable for various applications, providing a good balance of performance and cost.

- Compact Size: Easy to integrate into space-constrained designs.

- Versatile: Suitable for a wide range of applications due to its moderate resolution and various interface options.

Limitations

- Image Detail: Lower resolution compared to higher megapixel cameras, limiting the level of detail in captured images.

- Low-Light Performance: May not perform as well in low-light conditions compared to higher-end sensors with larger pixels and advanced technologies.

Summary

A 1-megapixel camera module is a practical choice for applications requiring moderate image quality, compact size, and affordability. Its versatility makes it suitable for consumer electronics, industrial applications, automotive systems, and IoT devices. By understanding its specifications, features, and limitations, you can effectively integrate and utilize a 1-megapixel camera module in various projects.
