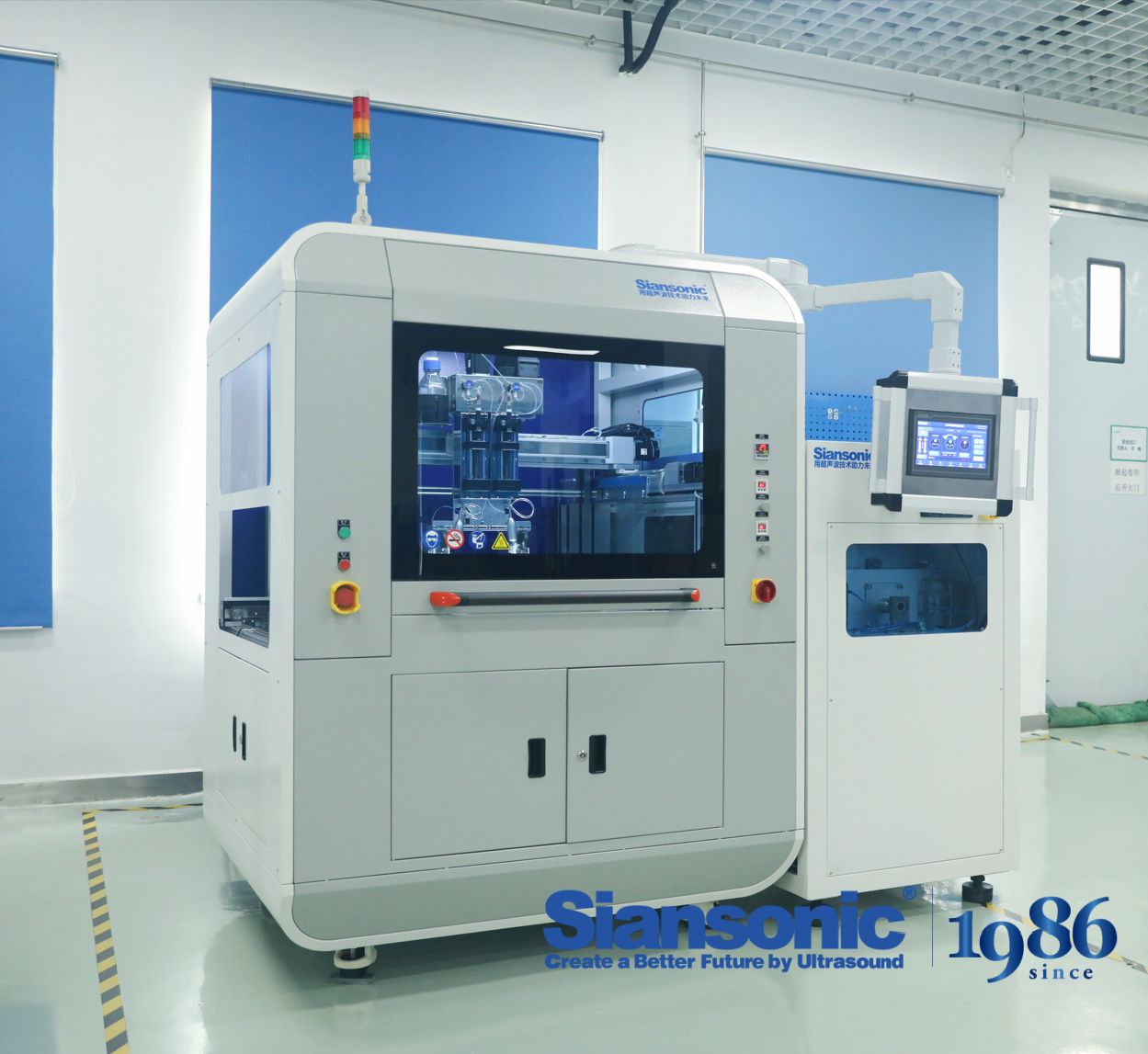

Best Ultrasonic Spray Coater for Achieving Flawless Thin Film Coatings

Flawless thin film coatings rarely happen by accident. They demand precision, repeatability, and an ultrasonic spray coater that's genuinely up to the challenge. For many researchers and manufacturers, the search for the best ultrasonic spray coater ends with Siansonic. Their approach goes beyond basic spraying—it's about giving you control over every droplet, so you can finally move from 'almost perfect' to flawless. But what actually separates a reliable system from a frustrating one? Let's break it down.

The Physics Behind Flawless Ultrasonic Deposition

Ultrasonic deposition hinges on high-frequency mechanical vibration to shatter a liquid stream into uniform droplets. At the nozzle tip, a piezoelectric stack drives a titanium horn between 20 kHz and 120 kHz. The oscillating surface creates capillary waves that destabilize the thin liquid film; once acceleration outpaces surface tension, droplets pinch off with diameters governed by excitation frequency and fluid properties. Because atomization arises from surface instability rather than turbulent breakup, the droplet size distribution stays remarkably narrow.

Flawless transfer depends on acoustic impedance matching throughout the delivery path. Any mismatch at the transducer-horn or horn-liquid interface reflects vibrational energy, forming standing waves that cause uneven deposition or satellite droplets. Precise mechanical coupling and tuned backing layers keep most energy focused in the atomization zone. Substrate distance matters just as much: droplets decelerate due to drag and must land with enough momentum to wet the surface without splashing. That balance is set by matching the droplet Weber number to the substrate surface energy.

Cavitation can appear in the feed line if local pressure dips below vapor pressure, but controlled backpressure and degassing suppress vapor bubbles that would otherwise disrupt the meniscus. Temperature drift from transducer losses changes viscosity, so closed-loop amplitude control adjusts drive voltage to maintain stable atomization. The result is a repeatable film with minimal overspray and crisp edge definition.

Choosing a Sprayer That Won't Compromise Your Thin Films

Thin film coatings demand a sprayer that delivers a fine, consistent mist without drenching the surface. Too much fluid at once causes runs and uneven thickness, while a coarse droplet pattern leaves visible texture that undermines the film's optical or protective properties. Look for sprayers with adjustable fluid needles and air caps designed specifically for low-viscosity materials—these allow you to dial in a narrow fan width and reduced flow rate, giving you the control needed to build up layers gradually.

The real test comes in how the sprayer behaves at the edges of your pass. Cheaper units often pulsate or spit when you feather the trigger, depositing tiny droplets that dry before they merge into the wet film. A quality gun with a sensitive trigger and a balanced air-to-fluid ratio holds a steady atomization even at partial pull, so you can start and stop each stroke without leaving ghost lines or dry spots. Pay attention to the needle and nozzle seating—any play there translates directly into inconsistent film thickness.

Don't overlook the cup or feed system either. Gravity-feed cups on lightweight guns are fine for small projects, but if you're spraying larger panels, a pressure pot or remote cup keeps the fluid viscosity stable and prevents air bubbles from entering the line. Bubbles are silent film killers: they pop after application and leave pinholes that compromise barrier performance. Choose a sprayer with filtered pickups and smooth internal passages, and your thin films will stay thin the way you intended—uniform, pinhole-free, and optically clean.

Five Hidden Flaws in Ultrasonic Spraying and How to Avoid Them

Ultrasonic spraying carries a reputation for precision, but it has a way of biting you in ways that don’t show up in the spec sheet. Clogging is the obvious one: suspensions settle, solvents evaporate near the transducer face, and suddenly the fan pattern collapses into a thin, pulsing stream. Pre-conditioning the fluid to the spray temperature and doing a quick solvent pulse every few minutes keeps this at bay without needing to disassemble the nozzle.

Droplet size drift is sneakier. You set the frequency once and assume the mist stays identical, but viscosity changes, surface tension shifts, and piezoelectric aging all push the median droplet diameter around. That can turn a uniform coating into a blotchy one over the course of a single shift. Tracking the droplet size under a microscope—or at least watching the coating gloss—gives you early warning. The power supply adds its own drift, too: the displayed wattage doesn’t always match the mechanical energy reaching the fluid, which produces wet streaks and weak adhesion.

Overspray waste is another hidden drain. The fine mist is easily pulled off target by room airflow or static, especially on small parts. A simple adjustable shroud and a low-flow vacuum near the spray zone recover a surprising amount of material. Then there’s the nozzle tip itself. Micro-deposits build up on the atomizing surface over hours, shifting the resonant frequency and degrading the pattern. A gentle wipe with a solvent-soaked cloth at each shift change, plus a more thorough cleaning every few days, prevents most of that.

Comparing Ultrasonic and Airbrush Methods for Thin Film Uniformity

Ultrasonic spraying consistently delivers a tighter droplet size distribution than airbrushing, which directly translates into fewer thickness fluctuations across the substrate. The ultrasonic nozzle vibrates at high frequency to break the liquid into fine, nearly monodisperse droplets, while an airbrush relies on a stream of compressed gas that creates a wider range of droplet sizes and a more turbulent deposition pattern.

This difference becomes especially visible on larger or non-flat surfaces. Ultrasonic systems tend to produce a soft, low-velocity mist that settles evenly with minimal overspray and edge buildup. Airbrushing, by contrast, often requires multiple overlapping passes and careful hand control to avoid blotchy regions and thin spots, making repeatability harder to maintain from one sample to the next.

That said, airbrush setups remain appealing for quick prototyping or budget-limited work where slight non-uniformity is acceptable. For applications demanding tight optical, electronic, or barrier coatings, ultrasonic deposition is usually the more reliable route because it reduces the influence of operator technique and delivers more consistent film thickness over the entire coated area.

Operator Habits That Make or Break Coating Quality

Many operators underestimate how much surface preparation influences adhesion. Finger oils, moisture in compressed air, and even faint residue from a previous coat create weak layers that are invisible to the eye. Experienced sprayers wipe with solvent and wait for it to flash off completely before applying paint. That waiting period matters more than most people think.

Small changes in gun distance and travel speed get magnified in film thickness. A habit of arcing the gun or pausing at the edges leads to alternating runs and dry spray. Consistent cross-coat passes require deliberate practice until they become muscle memory. Plenty of finish defects are not caused by the coating itself, but by a wrist angle shifting a few degrees.

Booth temperature, humidity, and curing time are often ignored, yet they make or break batch consistency. If operators move or pack parts as soon as the surface feels dry, trapped solvent can cause blistering or softness later. Recording wet film thickness and booth dew point every shift costs less than reworking a full batch.

Where Ultrasonic Spray Coaters Outperform in Real-World Production

Electronics assembly lines have quietly shifted toward ultrasonic nozzles for conformal coating of printed circuit boards. The gentle, low-pressure mist reaches under components and into tight corners without the overspray and clogging that plague traditional air-atomized systems. One contract manufacturer cut masking time by roughly a third after switching, simply because the spray pattern stays predictable on complex board geometries.

Medical device production presents an even sharper contrast. Drug-eluting stents and guidewires demand coating uniformity within a few microns, and the materials can cost more than gold per gram. Ultrasonic spray coaters apply these solutions with transfer efficiencies above 90%, whereas conventional pressure nozzles often lose 40-50% to overspray and bounce-back. That difference alone changes the economics of a full production batch.

In energy applications, the same principle shows up in fuel cell and thin-film solar manufacturing. Catalyst layers for membrane electrode assemblies need to be extremely thin and free of pinholes. The ultrasonic vibration breaks the liquid into droplets that are small enough to dry almost on contact, creating dense, uniform films without the coffee-ring defects seen with other coating methods. Engineers on those lines rarely go back to slot-die or air-spray once they see the edge definition and repeatability.

FAQ

Conclusion

The best ultrasonic spray coaters earn their reputation by turning a delicate physics problem into a repeatable process. Instead of relying on high-pressure air to blast droplets, these systems use a vibrating nozzle to create a soft, low-velocity mist with tightly controlled droplet size. That matters because thin film uniformity depends on how evenly the droplets land, spread, and dry. A sprayer with unstable frequency or poor nozzle design can leave dry particles, overspray, or edge buildup that quietly ruins optical or electronic coatings. When choosing equipment, look for a system that lets you dial in flow rate independently from atomization power, because that separation is what prevents the common flaw of 'coffee ring' effects or pinhole defects. Hidden problems like nozzle clogging, uneven heating of the substrate, and drifting viscosity are often ignored until they show up as coating failures. A well-engineered coater addresses these with cleanable nozzle geometry, closed-loop temperature control, and software that logs every run so you catch drift before it reaches the film.

In side-by-side tests, ultrasonic spray coaters consistently outperform airbrush methods for thin film uniformity, especially when coating below 100 nm or working with shear-sensitive polymers. Airbrushes tend to produce wider droplet distributions and can introduce air turbulence that disturbs wet films. Ultrasonic deposition, by contrast, creates a gentle plume that sits down without bouncing. Yet even the best machine cannot fix poor operator habits. Consistent distance, steady sweep speed, and careful cleaning between batches matter more than brand names. Real-world production lines—from perovskite solar cells to medical device coatings—choose ultrasonic coaters because they reduce material waste and deliver repeatable thickness across large areas. The best system is not the most feature-packed; it is the one that keeps atomization stable, gives you clear feedback, and survives daily use without demanding constant recalibration.
